Industrial Automation Products

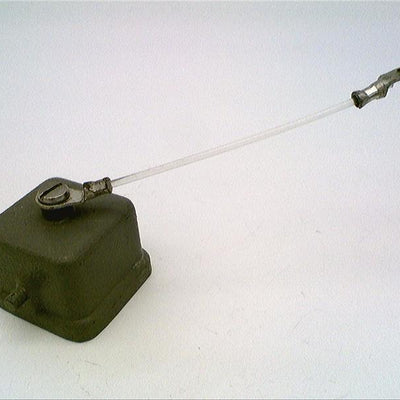

HARTING • RKD312033

09 20 003 5425
DUST CAP / COVER
SIZE 3A
PROTECTION COVER
HARTING HAN A SERIES SIZE 3A HOUSINGS
METAL BODY
ROHS COMPLIANT: YES

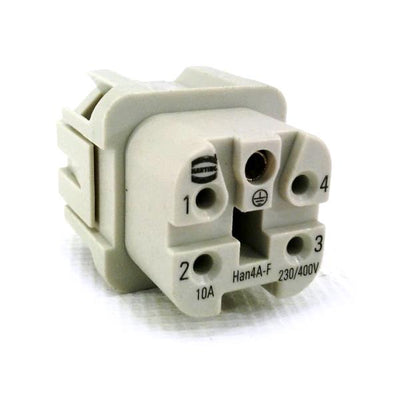

HARTING • RKD545056

09 20 004 2711
CONNECTOR INSERT
HEAVY DUTY
HAN A SERIES
RECEPTACLE
SCREW TERMINATION
FEMALE
3 A SIZE
4 CONTACTS
10 AMP
600V
(AKA: HAN-4A-F)

HARTING • RKD378146

09 20 010 0251
CLOSED FLANGE HOUSING
SIZE 10A
METAL
PRODUCT RANGE:HAN A SERIES
CONNECTOR MOUNTING:SURFACE MOUNT
RECTANGULAR SHELL SIZE:10A
FOR USE WITH:HAN 10A

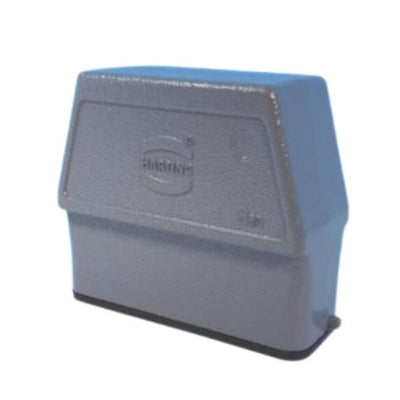

HARTING • RKD378148

09 20 016 0801
HAN A HOOD COUPLER HC 1 LEVER PG 16 ROHS COMPLIANT: NA

HARTING • RKD312037

09 20 016 2613
RECTANGULAR HAN INSERT
PLUG 32WAY SCREW
PRODUCT RANGE:HAN A SERIES
NO. OF CONTACTS:17CONTACTS
RECTANGULAR SHELL SIZE:16A
GENDER:PLUG
HEAVY DUTY CONTACT TYPE:SCREW PIN
CURRENT RATING:16A
WIRE SIZE AWG MAX:14AWG ROHS COMPLIANT: YES

HARTING • RKD312039

09 20 016 2813
RECTANGULAR HAN INSERT
FEM
32WAY SCREW
PRODUCT RANGE:HAN A SERIES
NO. OF CONTACTS:17CONTACTS
RECTANGULAR SHELL SIZE:16A
GENDER:RECEPTACLE
HEAVY DUTY CONTACT TYPE:SCREW SOCKET
CURRENT RATING:16A
WIRE SIZE AWG MAX:14AWG ROHS COMPLIANT: YES

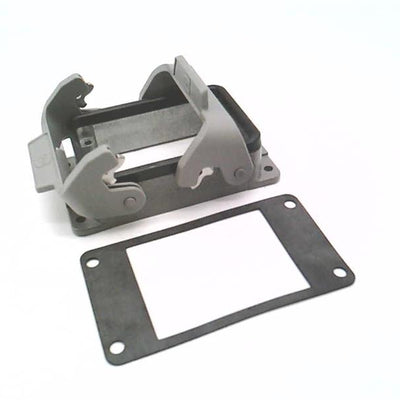

HARTING • RKD312041

09 20 032 0301
HARTING
09200320301
HAN A BASE PANEL
2 LEVER
BULKHEAD MOUNTED HOUSING
HAN-EASY LOCK
32A
HAN 32A HOODS &
INSERTS
ROHS COMPLIANT: YES

HARTING • RKD552014

09 20 032 0521
HOOD
SIZE 32A
SIDE ENTRY
ALUMINIUM
PRODUCT RANGE: HAN A SERIES
CABLE EXIT ANGLE:90
CONNECTOR BODY MATERIAL ALUMINIUM BODY
FOR USE WITH HARTING HAN A SERIES INSERTS
LOCKING TYPE: 2 LEVER
RECTANGULAR SHELL
SIZE: 32A
ROHS COMPLIANT: YES

HARTING • RKD439723

09 20 032 1520
HOOD
32A
SIDE ENTRY
ALUMINIUM
PG21
PRODUCT RANGE:HAN A SERIES
CABLE EXIT ANGLE:90ª

CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HAN 32A INSERTS &
BASES
LOCKING TYPE:2 LEVER
RECTANGULAR SHELL SIZE:32A ROHS COMPLIANT: NA

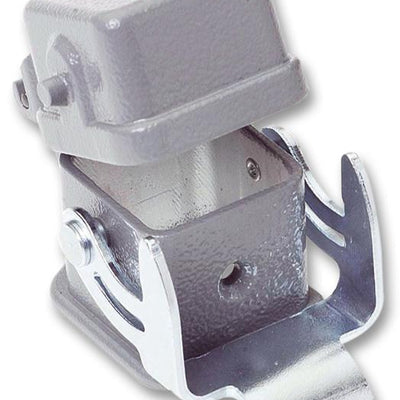

HARTING • RKD552016

09 20 033 0306
09 20 003 0306 - DUST CAP / COVER
HINGED WITH SEAL
COVER
METAL BODY
ROHS COMPLIANT

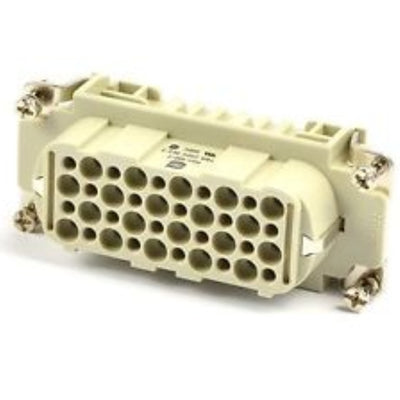

HARTING • RKD439725

09 21 040 3101
HEAVY DUTY POWER CONNECTOR
HAN D SERIES
SIZE 16 B
40 CONTACTS
FEMALE
10 AMP
250 V
4 KV
0.14-2.5 MM CROSS SECTION
-40 TO +125 DEGREES C
(HAN D 40 POS. F INSERT CRIMP)

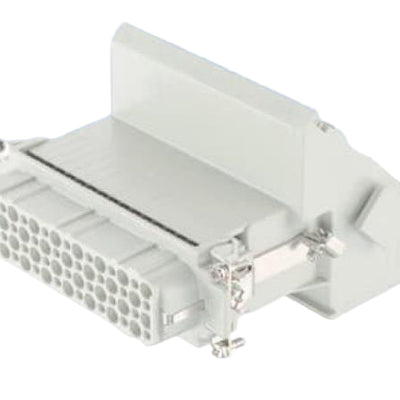

HARTING • RKD545060

09 21 040 4712
INSERTS
TERMINAL BLOCK CONNECTOR
SCREW TERMINATION
FEMALE
POLYCARBONATE (PC)
RAL 7032 (PEBBLE GREY)
10 AMP
SIZE: 16 B
CONTACTS: 40

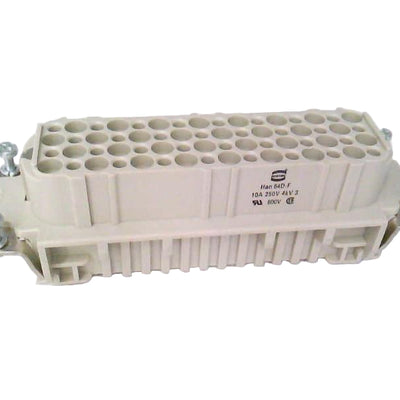

HARTING • RKD439727

09 21 064 2701
DISCONTINUED BY MANUFACTURER
INSERT WIRE WRAP TERMINATION
FEMALE
POLYCARBONATE
PEBBLE GREY
10 AMP
24B SIZE
64 CONTACTS
22 MM TERMINATION LENGTH

HARTING • RKD312043

09 21 064 4601
TERMINAL BLOCK CONNECTOR
INSERT
MALE
10 AMP
SIZE: 24 B
CONTACTS: 64
CONDUCTOR CROSS-SECTION: 0.2 ... 2.5 MM²

SCREW TERMINATION

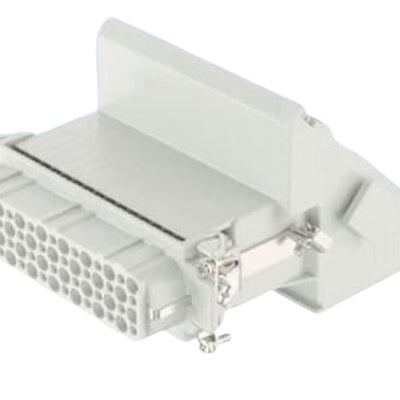

HARTING • RKD439729

09 21 064 4712
TERMINAL BLOCK CONNECTOR
INSERT
FEMALE
10 AMP
SIZE: 24 B
CONTACTS: 64
CONDUCTOR CROSS-SECTION: 0.2 ... 2.5 MM²

RIGHT HAND VERSION
SCREW TERMINATION

HARTING • RKD439733

09 23 248 6824
CONNECTOR
DIN 41612 SERIES
TYPE 2C
3 ROWS
48 CONTACTS
FEMALE STRAIGHT
2 AMP
WAVE SOLDERING TERMINATION
-55 TO +125 DEGREES C
(DIN-SIGNAL 2C048FS-2
9C1-2)

HARTING • RKD661148

09 27 132 6903
PLUG
DIN41612
Q/2
32WAY
PRODUCT RANGE:TYPE 2Q SERIES
NO. OF CONTACTS:32CONTACTS
GENDER:PLUG
PITCH SPACING:2.54MM
NO. OF ROWS:2 ROW
ROWS LOADED:A + B
CONTACT PLATING:GOLD PLATED CONTACTS
CONTACT MATERIAL:COPPER
NO. OF
ROHS COMPLIANT: YES

HARTING • RKD661150

09 30 006 0301
HEAVY DUTY CONNECTOR
LOW PROFILE
BASE
BULKHEAD MOUNT
ALUMINIUM BODY
1 LEVER
6B

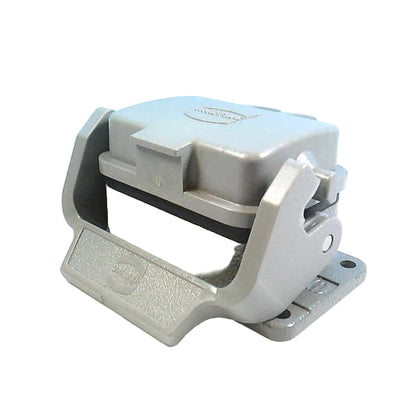

HARTING • RKD439735

09 30 006 0302
CONNECTOR HOUSING
SIZE 6B
SINGLE LOCKING LEVER
180 DEGREE CABLE EXIT ANGLE
W/ THERMO-PLASTIC COVER
LOW CONSTRUCTION
-40 TO +125 DEGREE C
IP65
(HAN B BASE PANEL 1 LEVER THERMOPLASTIC C)

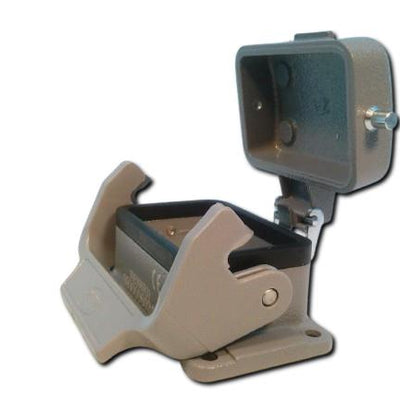

HARTING • RKD312047

09 30 006 0318
BULKHEAD HOUSING
SIZE 6B
METAL
PRODUCT RANGE:HAN B SERIES
CONNECTOR MOUNTING:BULKHEAD MOUNT
RECTANGULAR SHELL SIZE:6B
FOR USE WITH:HAN 6B HOODS
METAL COVER

HARTING • RKD378150

09 30 006 0442
TOP ENTRY HOOD
SIZE 6B
METAL
PRODUCT RANGE
HAN B SERIES
CABLE EXIT ANGLE 180
ALUMINIUM BODY
FOR USE WITH:HAN 6B INSERTS

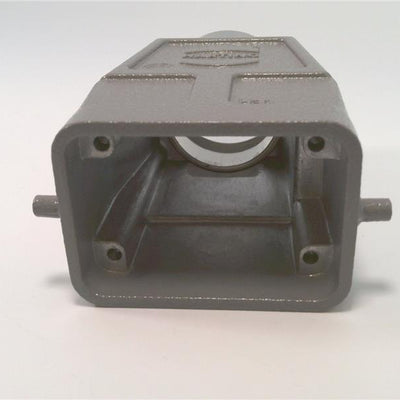

HARTING • RKD307495

09 30 006 0443
HOOD
HAN 6B
HIGH TOP ENTRY
METAL
PRODUCT RANGE:HAN B SERIES
CABLE EXIT ANGLE:180
CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HAN 6B INSERTS &
BASES
LOCKING TYPE:1 LEVER
RECTANGULAR SHELL SIZE:6B
ACCESSORY TYPE:HOOD
ROHS COMPLIANT: YES

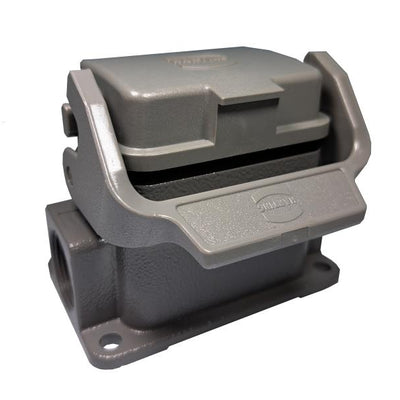

HARTING • RKD501420

09 30 006 1296
INDUSTRIAL CONNECTOR HOOD
HAN B SERIES
SIZE 6B
SIDE ENTRY
SINGLE LOCKING LEVER
COLOUR: DUST GREY (RAL 7037)
SEAL: NBR MATERIAL
-40 TO +125 DEGREE C
IP65
(HAN 6B-ASG2-LB-K-16)

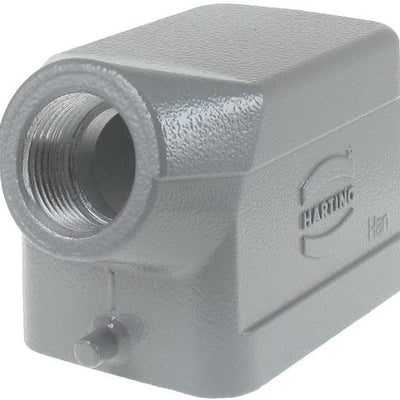

HARTING • DTGEU10783

09 30 006 1540
HEAVY DUTY CONNECTOR
HOOD
HAN B
SIZE 6 B
SINGLE LOCKING LEVER
LOW CONSTRUCTION
1 SIDE ENTRY
ALUMINUM DIE-CAST MATERIAL
-401 TIO +125 DEGREES C
IP65/66/67
(HAN B HOOD SIDE ENTRY LC 2 PEGS PG 13.5)
