Industrial Automation Products

SIEMENS • RKD1044757

3RK1400-1DQ01-0AA3
AS-I COMPACT MODULE K60 DIGITAL 4 DI/4 DQ
IP67 4 X INPUT
MAXIMUM 200 MA 4 X OUTPUT
1 A
24 V DC 8 X M12 SOCKET Y-II ASSIGNMENT MOUNTING PLATE 3RK1901-0CA00 MUST BE ORDERED SEPARATELY

SIEMENS • RKD253133

3RK1400-1DQ03-0AA3
INPUT/OUTPUT MODULE
200MA
PNP
ELECTR
DC24V
1AMP

SIEMENS • RKD903188

3RK1400-1DQ04-0AA3
AS-I COMPACT MODULE
4I/4O
200MA PNP
ELECTR
DC24V
1A

SIEMENS • RKD903190

3RK1400-1DQ05-0AA3
DISCONTINUED BY MANUFACTURER
AS-I COMPACT MODULE
K60 DIGITAL 4 DI/4 DQ
24 VDC
ATEX EX II 3D
IP67

SIEMENS • RKD74085

3RK1400-1KG01-0AA1
DISCONTINUED BY MANUFACTURER
MODULE
INTERFACE MODUL
24 VDC
40/60MM

SIEMENS • RKD253136

3RK1400-1MG01-0AA1
DISCONTINUED BY MANUFACTURER
DISCONTINUED SINCE 04/10/2011
AS-I LOAD FEEDER MODULE
24VDC
DIN RAIL MOUNT

SIEMENS • RKD219601

3RK1400-1MQ00-0AA3
AS-I COMPACT MODULE
K60 DIGITAL 4 DI/2 DQ
2 AMP
24 VDC
200 MA
PNP TRANSISTOR
6X M12 CONNECTORS
4 INPUTS
2 OUTPUTS
LED INDICATOR
-40 TO +85 DEGREE C
IP67

SIEMENS • RKD968924

3RK1400-1MQ01-0AA4
I/O MODULE
AS-INTERFACE
24V DC STARTER IP67
DIGITAL
4INPUTS 2OUTPUTS TWO DIRECT START STARTERS
TYPE K60 2 X 2 INPUTS
200MA

SIEMENS • RKD1116498

3RK1400-1MQ03-0AA4
AS-INTERFACE
24VDC STARTER
4 DI / 1 DQ
IP67 PROTECTION CLASS
REVERSING STARTER IN K60 DESIGN
2 X 2 INPUTS
200MA
Y ASSIGNMENT 1 OUTPUT
2.5A FOR CONNECTION OF 1 X 24VDC MOTOR
MOUTNING PLATE ORDERED SEPARATELY

SIEMENS • RKD1116501

3RK1400-1NQ01-0AA4
AS-INTERFACE
24 VDC STARTER
4 DI /1 DQ
IP67
DOL STARTER IN K60 DESIGN
2 X 2 INPUTS
200 MA
Y ASSIGNEMENT
1 OUTPUT
3 AMP FOR CONNECTION OF 1 X 24DC MOTOR
MOUNTING PLATE ORDERED SEPARATELY

SIEMENS • RKD1039332

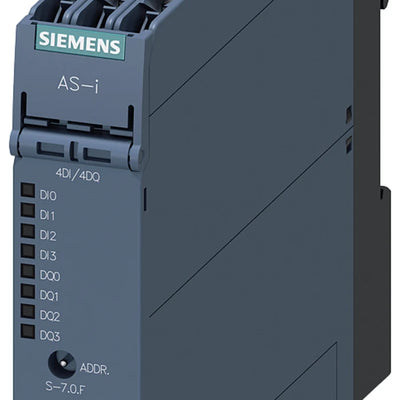

3RK1400-2CE00-2AA2
AS-I SLIMLINE COMPACT MODULE SC22.5 DIGITAL 4 DI/4 DQ
IP20 4 X INPUTS FOR 3-WIRE SENSOR SENSOR SUPPLY CAN BE SWITCHED OVER 4 X OUTPUT
2 A
24 V DC MAXIMAL 4 A FOR ALL OUTPUTS SCREW TERMINALS WIDTH 22.5 MM

SIEMENS • RKD1039335

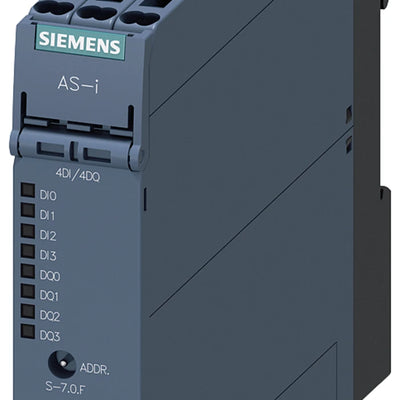

3RK1400-2CG00-2AA2
COMPACT MODULE
AS-I SLIMLINE
SC22.5 DIGITAL
4 DIGITAL INPUT
4 DIGITAL OUTPUT
FOR 3-WIRE SENSOR
SENSOR SUPPLY CAN BE SWITCHED OVER 4 X OUTPUT
2 AMP
24 VDC
MAXIMAL 4 AMP FOR ALL OUTPUTS
SPRING-TYPE TERMINALS
IP20

SIEMENS • RKD74087

3RK1402-0BE00-0AA2
DISCONTINUED BY MANUFACTURER
PRODUCT DISCONTINUED SINCE 01.12.2016
SLIMLINE MODULE
230V
4 KV
2 INPUT FOR 3 WIRE SENSOR
2 OUTPUT
S22.5 DIGITAL 2DI/2RQ
RELAY SCREW TERMINALS

SIEMENS • RKD219604

3RK1402-1CE00-0AC2
DISCONTINUED BY MANUFACTURER
INTERFACE MODULE
CONTROL VOLTAGE 115VSC
4 INPUTS/4 OUTPUTS
SCREW-TYPE TERMINAL CONNECTION

SIEMENS • RKD260083

3RK1402-3CE00-0AA2
I/O MODULE
AS-I SLIMLINE
4X INPUTS / 4X OUTPUTS
270 MA MAX.
26.5~31.6 V
IP20

SIEMENS • RKD289477

3RK1402-3CE01-0AA2
DISCONTINUED BY MANUFACTURER
PRODUCT DISCONTINUED SINCE: 01/12/2016
AS-I SLIMLINE MODULE
1 AMP
24 VDC
DIGITAL 4 DI/4 DQ
4 X INPUTS
FOR 3 WIRE SENSOR
EXTERNAL SENSOR SUPPLY
3X 1 OUTPUT
SCREW TERMINALS 45MM WIDTH

SIEMENS • RKD219607

3RK1402-3CG00-0AA2
AS-I SLIMLINE MODULE PHASED-OUT PRODUCT !!! FOR FURTHER INFORMATION
PLEASE CONTACT OUR SALES DEPARTMENT S45
DIGITAL 4 DI/4 RQ
IP20 4 X INPUTS FOR 3-WIRE SENSOR 4 X 1 OUTPUT
RELAY
SPRING-TYPE TERMINALS OVERALL WIDTH 45 MM

SIEMENS • RKD139921

3RK1405-0BE00-0AA2
ASISAFE MODULE S22.5F PHASED-OUT PRODUCT !!! FOR FURTHER INFORMATION
PLEASE CONTACT OUR SALES DEPARTMENT DIGITAL SAFETY
2 F-DI/2 DQ
IP20 2 X INPUT FOR MECHANICAL SENSORS 2 X STANDARD OUTPUT 24 V DC OUTPUT SUPPLY FROM U_ASI SCREW TERMINALS OVERALL WIDTH

SIEMENS • RKD903193

3RK1405-0BQ00-0AA3
DISCONTINUED BY MANUFACTURER 1/10/2020
AS-I SAFETY MODULE
COMPACT MODULE K60F DIGITAL SAFETY
2 X INPUT FOR MECHANICAL SENSORS
2 X STANDARD OUTPUT
24 VDC
4 X M12 SOCKET
IP67
REPLACED BY 3RK1405-0BQ20-0AA3

SIEMENS • RKD968927

3RK1405-0BQ20-0AA3
ASISAFE COMPACT MODULE K45F DIGITAL SAFETY
2 F-DI/2 DQ
IP67 2 X INPUT FOR MECHANICAL SENSORS 2 X STANDARD OUTPUT 24 V DC OUTPUT SUPPLY FROM U_ASI 4 X M12 SOCKET MOUNTING PLATE 3RK1901-2EA00 OR 3RK1901-2DA00 MUST BE ORDERED SEPARATELY

SIEMENS • RKD1079976

3RK1405-1BQ20-0AA3
COMPACT MODULE
K45F
DIGITAL SAFETY
2 F-DI/2 DQ
IP67
2 X INPUT FOR MECHANICAL SENSORS
2 X STANDARD OUTPUT
24 V DC
4 X M12 SOCKET
MOUNTING PLATE

SIEMENS • RKD1116506

3RK1405-1SG15-0AA2
ASISAFE
SLIMLINE MODULE
S45F
DIGITAL SAFETY
IP20
1F-RQ/3DI/2DQ
1 X SAFE OUTPUT RELAY
2-CHANNEL
3 X STANDARD INPUT
2 X STANDARD OUTPUT
24 V DC
SPRING-LOADED TERMINALS
WIDTH 45 MM

SIEMENS • RKD279900

3RK1408-0BT00-0CA0
DISCONTINUED BY MANUFACTURER
END OF PRODUCT LIFECYCLE SINCE: 01.07.2002
MODULE
24VDC
100MA MAX.

SIEMENS • RKD279902

3RK1408-0BT01-0CA0
DISCONTINUED BY MANUFACTURER - 09/01/2002
AS-I APPL MODULE
PNEUMATIC
1 X PRESSURIZED AIR CONNECTION
2I PNP
100MA
2OP
SUITABLE FOR PNEUMATIC HOSES
