10.U5.B0B-1000

Part No.: 10U5B0B-1000

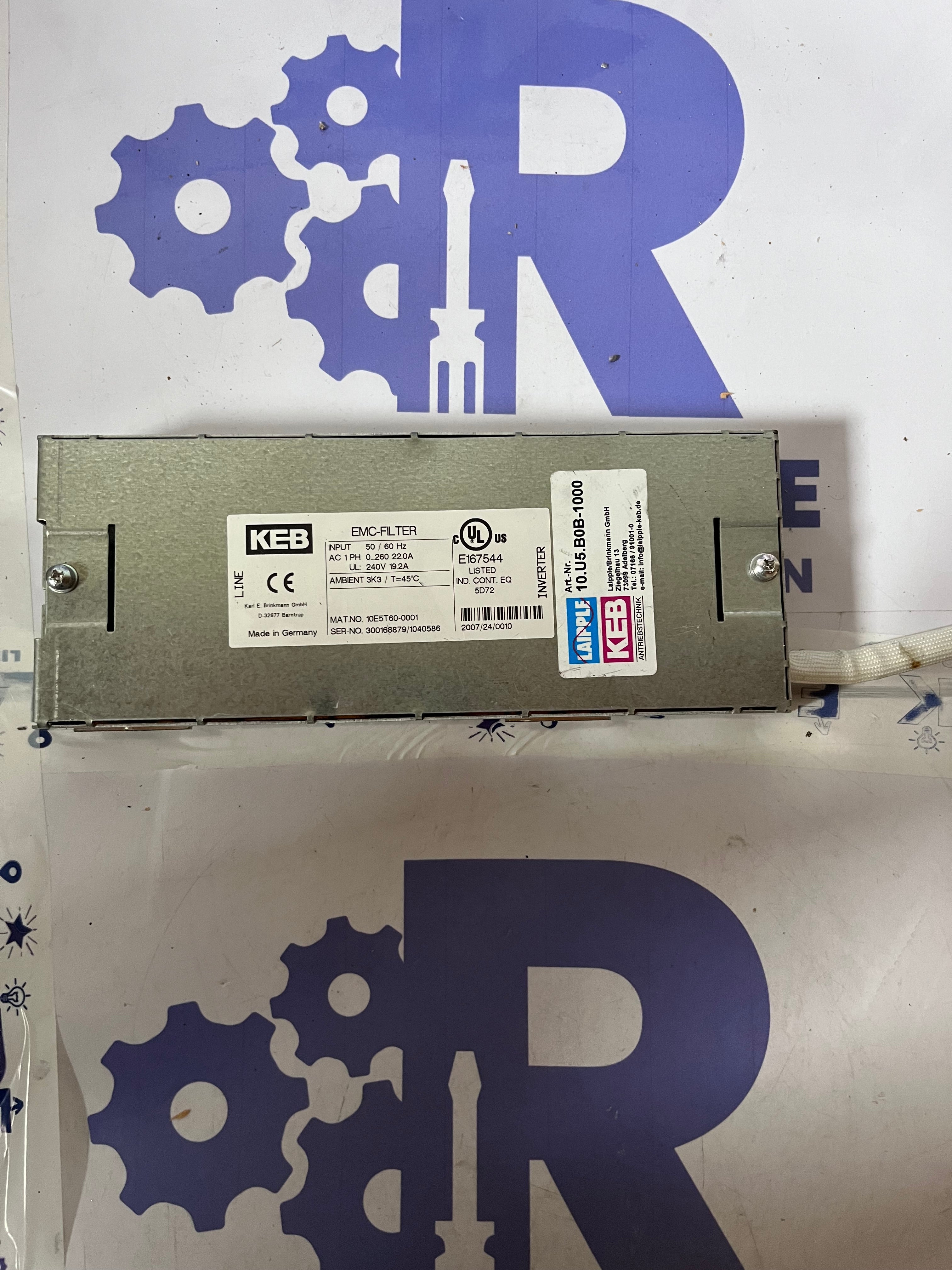

KEB Line Filter – Model: 10E5T60-0001

This is a high-frequency line interference suppression component, designed to meet standards similar to EN 61800-3, primarily for mitigating conducted electrical disturbances.

Key Specifications:

• Motor cable support: Effective up to approx. 30 meters, suitable for frequencies up to ~16 kHz

• Residual current: Around 12 milliamps

• Rated current (standard version): ~22 amps

• Operating voltage range: 0 to about 260 volts

• Designed for: Single-phase AC input

• Approx. size (W × H × D): 88 × 249 × 40 mm
