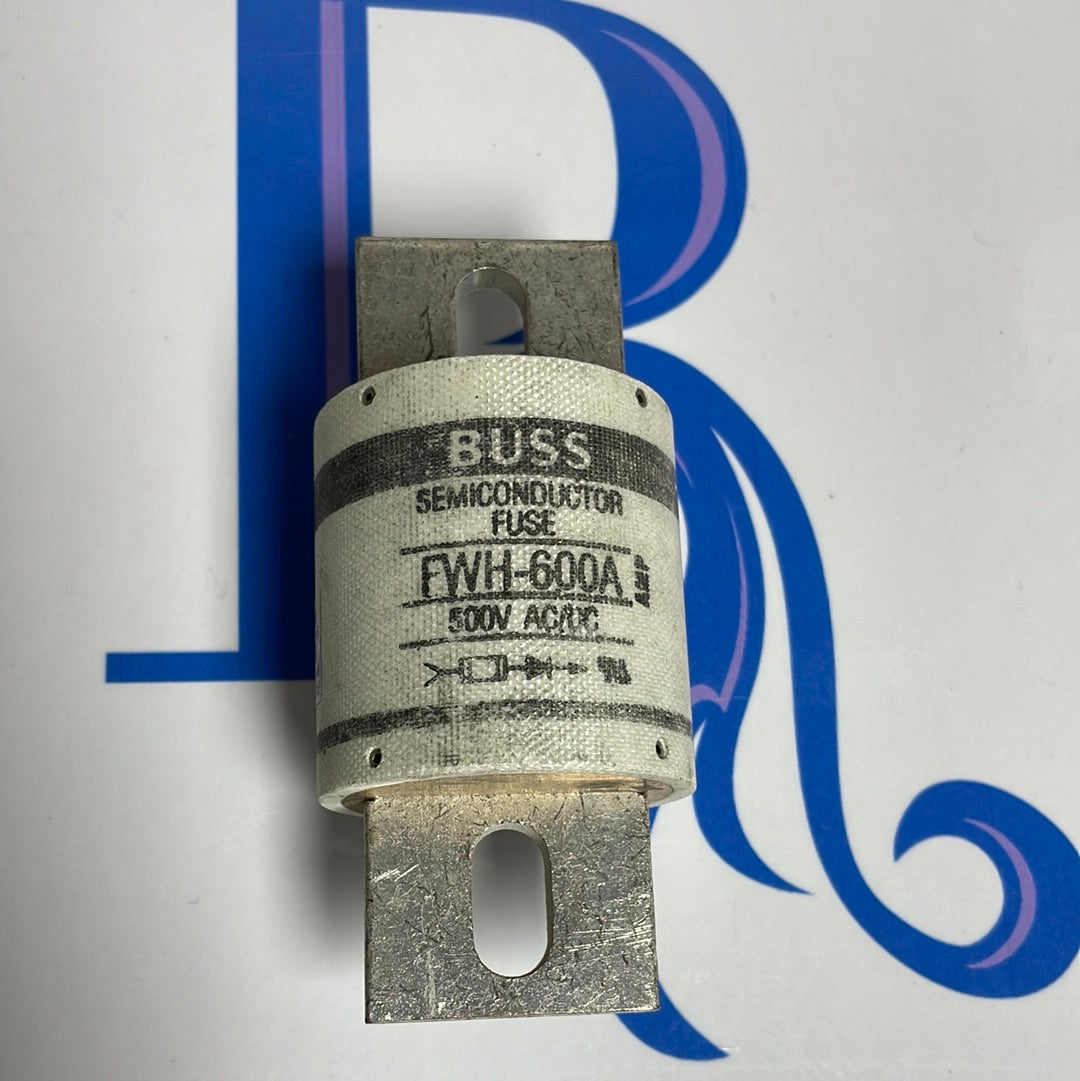

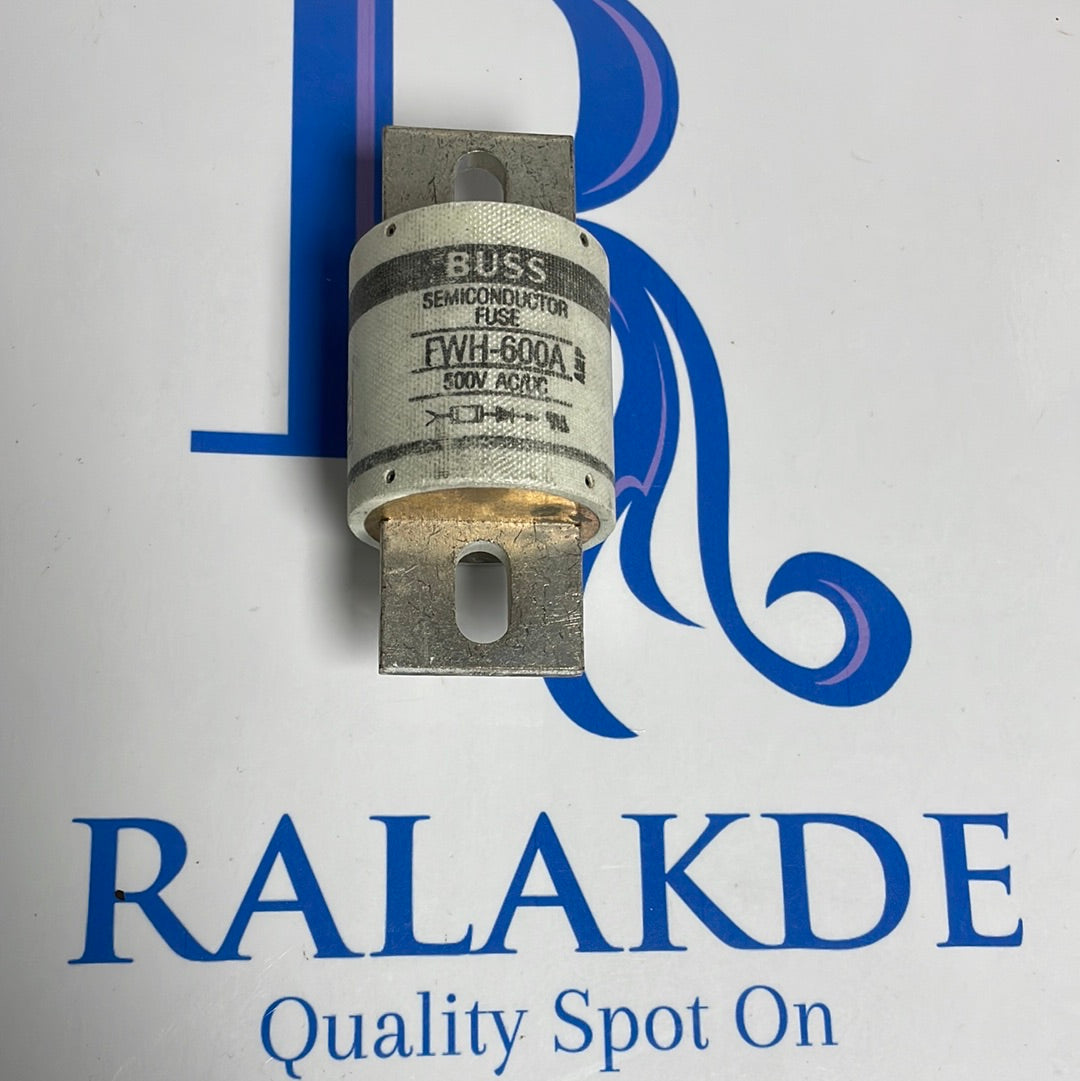

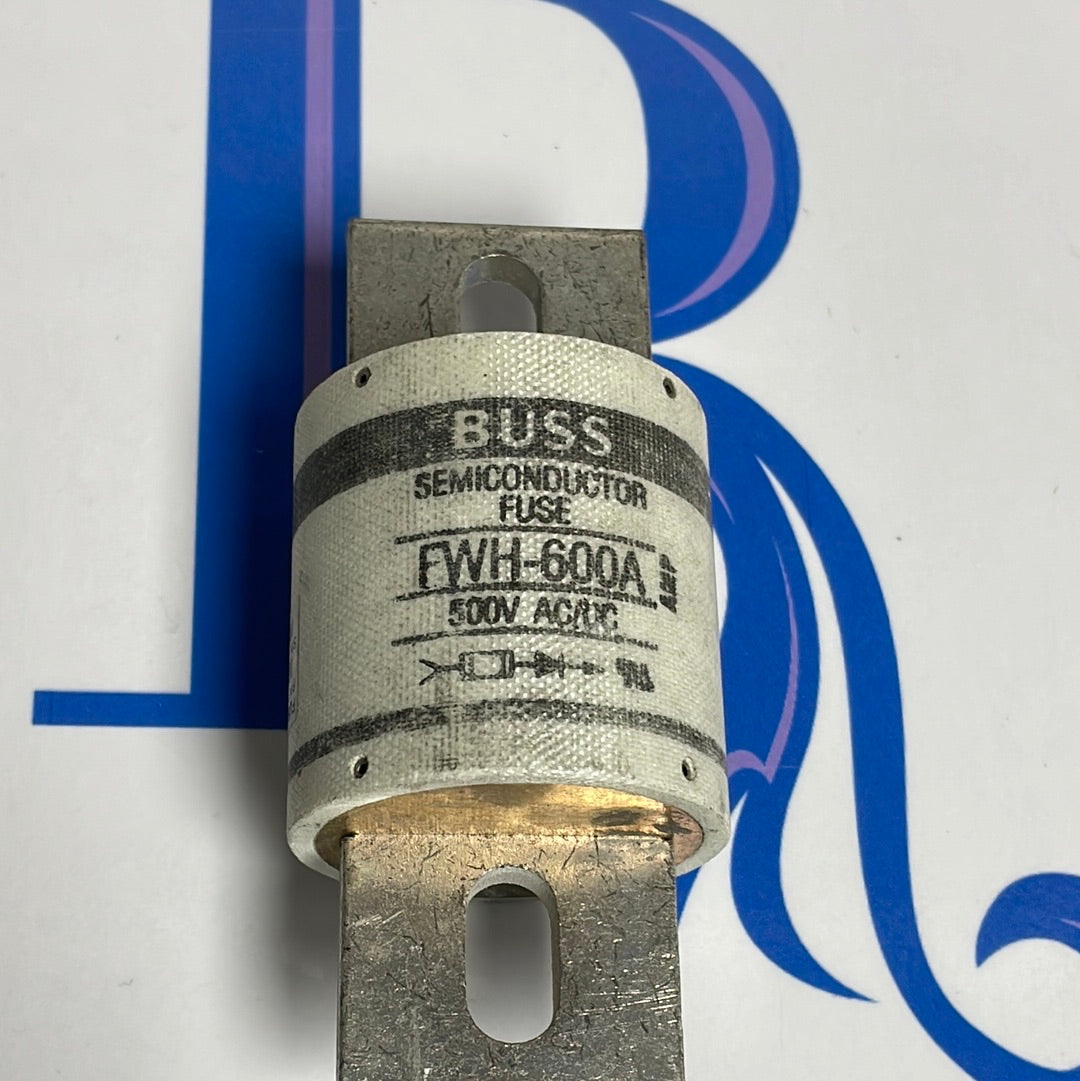

Bussmann FWH-600A 500V AC/DC High Speed Specialty Fuse, Fast Blow

North American Fuse Link, High speed fuse
Breaking capacity 200 kA RMS Symmetrical, 50 kA at 500 VDC
Low Energy Let-Through, Low Watts Loss
Superior Cycling Capability, Low Arc Voltage
Blade terminals, stud mount
Cylindrical body, Non-indicating
Overall length – 4.340 inches (110.236 mm)
Fuse body length – 2.090 inches (53.086 mm)
Diameter – 2.00 inches (50.8 mm)
Fixing centres 2.780 to 3.530 inches (70.612 to 89.662 mm)
CE-marked, RoHS-compliant & CSA-certified
